Imass, Inc. Instruments for the Materials And Surface Sciences

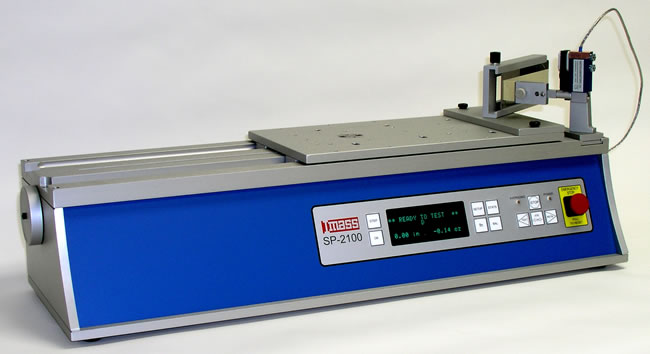

SP-2100 Slip/Peel Tester




SP-2100 Slip/Peel Tester

Is successor to, and the direct functional replacement for, the widely-used IMASS SP-2000 which has proven accuracy, reliability and acceptability of test data.

SP-2100 retains these features:
• One tester does peel, release and COF
• Conforms to relevant standards from PSTC, ASTM, TLMI, FINAT and TAPPI
• Easy to set up and operate
• Precision servo/screw drive provides speeds 0.2 to 300 in/min (0.5 to 762 cm/min)
• 25 lbf (10 kgf) force capacity
• Measures Static Peak, Kinetic Peak, Valley, Average and RMS forces
• Easily switches between English, Metric and SI units
• Automatically adapts to any power source from 100 to 240 vac, 47 to 63 Hz.
• Variable angle peel fixture standard
• 180 degree peel, COF hardware standard
• Embedded microprocessor permits self-contained, stand-alone operation
• Running and lot statistics (Mean, Standard Deviation, Coefficient of Variation)
• Automatic balance and calibration

SP-2100 adds these features, as standard (included in base price):

• Super low-noise analog electronics for precision and stability
• “TEDS” (IEEE 1451d4) calibration protocol for load cells
• SetupSaver to store 7 setup changes
• ExLink21 software to log and plot data in Excel®
• StatsLink21 software to log and plot data and calculate running and lot statistics
• Sealed front panel push buttons
